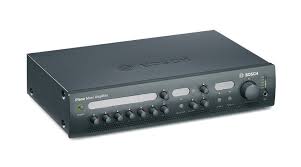

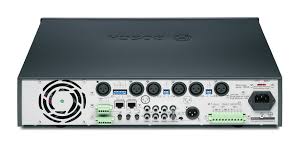

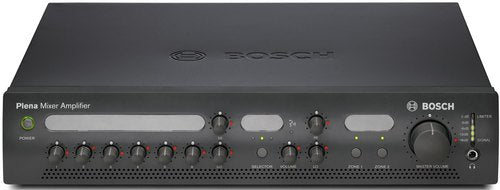

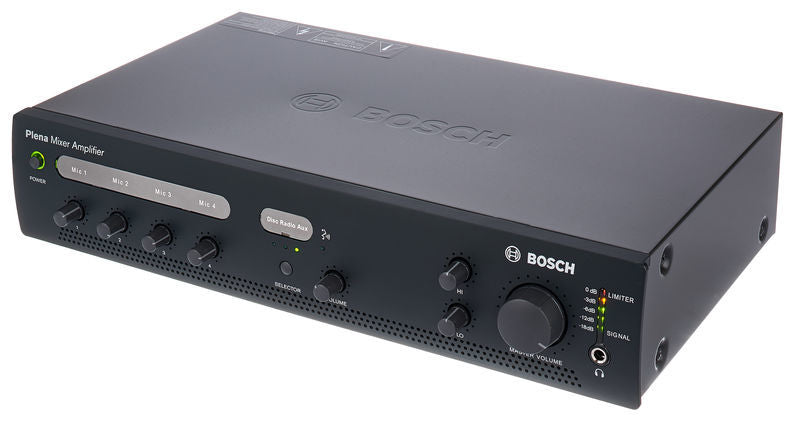

BOSCH PLE-1MA060-EU Plena Mixer Amplifier
Plena Mixer Amplifier Product Features 6 microphone/line inputs plus 3 music source inputs 100 V, telephone and a call station...
Plena Mixer Amplifier
Product Features
- 6 microphone/line inputs plus 3 music source inputs
- 100 V, telephone and a call station input with priority & VOX
- 2 zones and announcement only output
- Voice activated emergency override
- High output power 120 and 240 Watts
Technical Specification
| Mains power supply | |
| Voltage | 230 VAC ±10%, 50/60 Hz (reduced power at lower mains or battery voltage) |
| Inrush current | 5 A |
| Power consumption | 200 VA |
| Performance | |
| Frequency response | 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output) |
| Distortion | <1% @ rated output power, 1 kHz |
| Bass Control | Max -12/+12 dB (frequency is setting dependent) |
| Treble Control | Max -12/+12 dB (frequency is setting dependent) |
| RJ-45 input | 1x |
| Wall panel input | For PLE‑WP3S2Z |
| Mic/Line input | 4x |
| Input 1 (Push-to-talk contact with ducking functionality) | 5‑pin Euro style, balanced, phantom 3‑pin XLR, balanced, phantom |
| Input 2-4 (VOX with ducking functionality on input 2) | 3‑pin XLR, balanced, phantom |
| Sensitivity | 1 mV (mic); 1 V (line) |
| Impedance | >1 kohm (mic); >5 kohm (line) |
| Dynamic range | 93 dB |
| S/N (flat at max volume) | >63 dB (mic); >70 dB (line) |
| S/N (flat at min volume/muted) | >75 dB |
| CMRR (mic) | >40 dB (50 Hz to 20 kHz) |
| Headroom | >17 dB |
| Speech filter | -3 dB @ 315 Hz, high-pass, 6 dB/oct |
| Phantom power supply | 16 V via 1.2 kohm (mic) |
| Music input | 1x |
| Connector | 7‑pin Euro style pluggable screw connector |
| Sensitivity Tel | 1 V maximum |
| Sensitivity 100V | 100 V maximum |
| Impedance | >10 kohm |
| S/N (flat at max volume) | >65 dB |
| VOX | Threshold 50 mV; attack time 150 ms; release time 2 s |
| Master/music output | 1x |
| Connector | 3-pin XLR, balanced |
| Nominal level | 1 V |
| Impedance | <100 ohm |
| Loudspeaker output 100 V | |
| Connector | Euro style pluggable screw terminal, floating |
| Max / rated PLE-1MA060 | 90 W / 60 W |
| Loudspeaker output 4 ohm | |
| Connector | Euro style pluggable screw terminal, floating |
| PLE-1MA060-EU | 16 V (60 W) |
