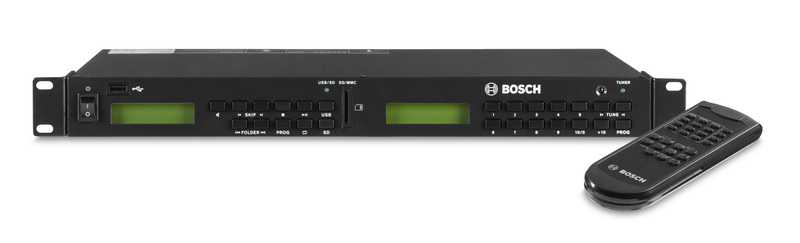

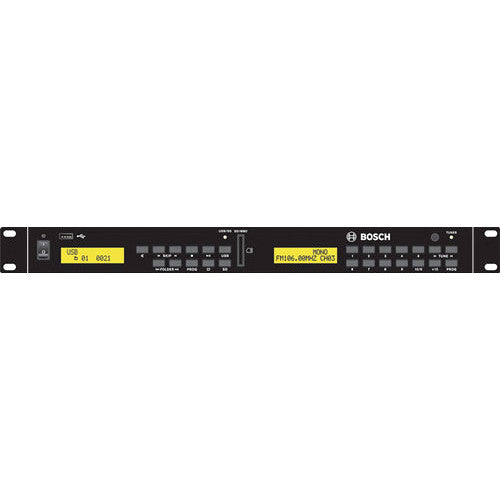

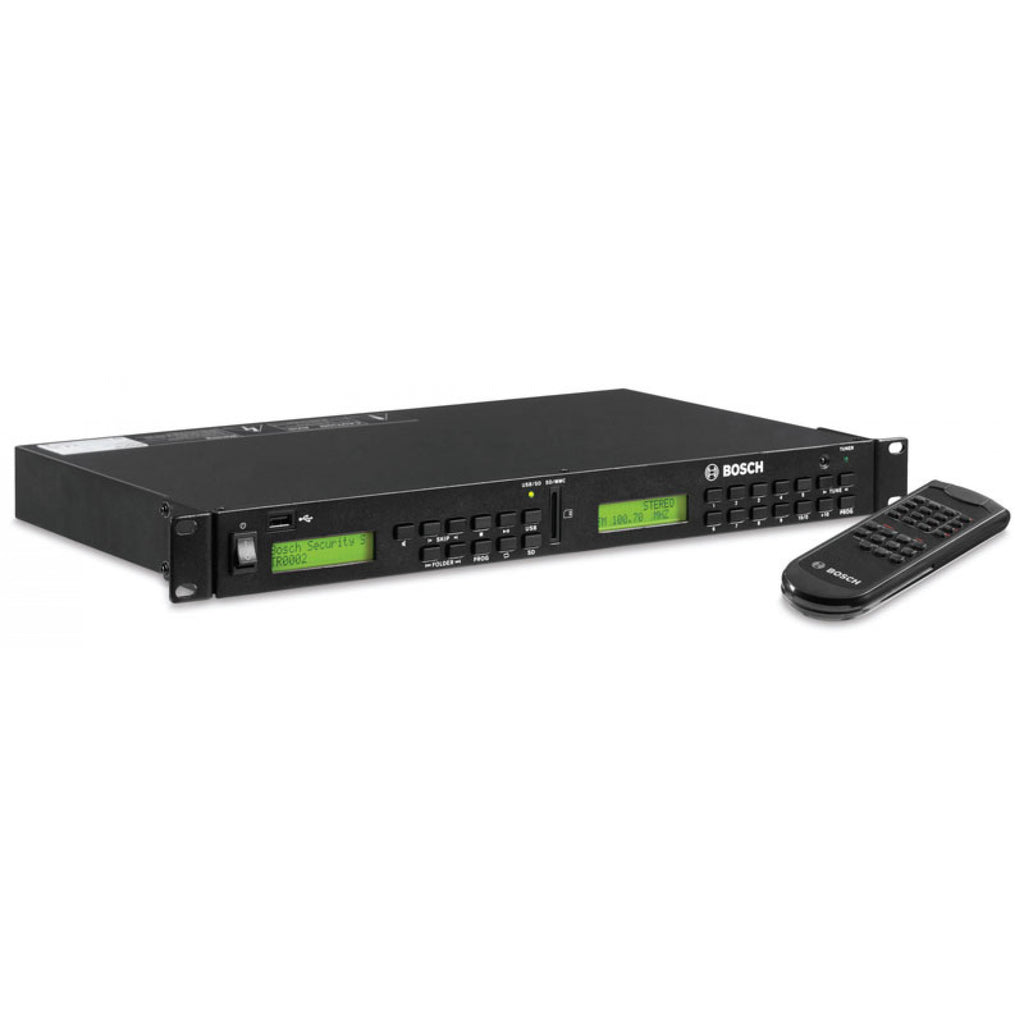

BOSCH PLE-SDT Plena Easy Line SD Tuner BGM source
Plena Easy Line SD Tuner Product Features MP3 playback from SD card and USB inputs FM tuner with RDS, presets...
Plena Easy Line SD Tuner
Product Features
- MP3 playback from SD card and USB inputs
- FM tuner with RDS, presets and digital control
- Simultaneous operation of SD/USB-player and FM tuner
- Separate outputs for digital source and FM tuner
Technical Specification
|
Power Supply |
|
| Voltage | 115 - 230 VAC ±10%, 50/60 Hz |
| Power supply fuses | 230 VAC 0.63 AT / 250 V | 120 VAC 1.25 AT / 250 V |
| Power consumption (typical) | 10 W |
| Power consumption (Max.) | 50 VA |
| FM tuner | |
| Distortion | < 1 % |
| Total harmonic distortion (1 kHz) | < 0.8 % |
| FM range | 87.5 ÷ 108 MHz |
| Frequency response | 50 Hz ÷ 12 kHz |
| Channel separation (1 kHz) | ≥ 40 dB |
| Intermediate rejection | ≥ 70 dB |
| Signal / noise ratio | ≥ 50 dB |
| Intermediate frequency | 10.7 MHz |
| Input sensitivity | 6 μV e.m.f. (2 uV) |
| Automatic tuning sensitivity | ≤ 50 μV |
| Antenna input | 75 ohms (coaxial) |
| Audio output level | - 10 dBV |
| SD / USB audio player | |
| Maximum storage capacity | 32 GB |
| Maximum number of tracks | 2000 |
| Frequency response | 50 Hz ÷ 20 kHz |
| Signal / noise ratio | ≥ 70 dB |
| Total harmonic distortion (1 kHz) | < 0.1 % |
| Stereo separation | ≥ 60 dB |
| Audio output level | - 10 dBV |
