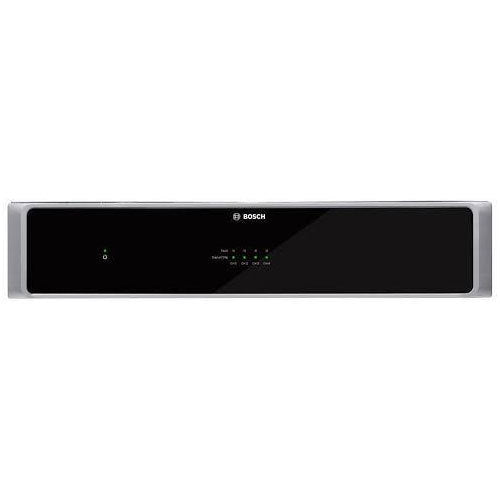

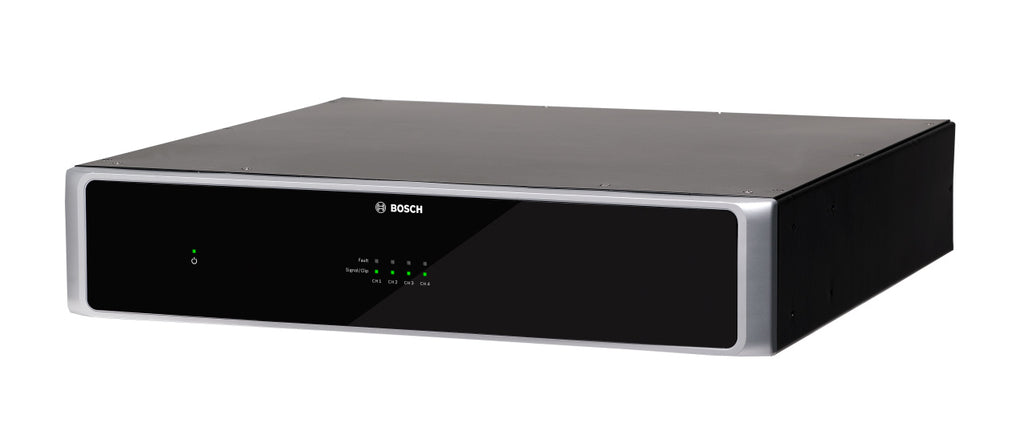

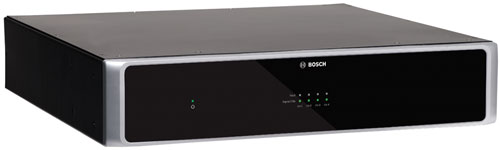

BOSCH PLM-4P220 PLENA Matrix DSP Amplifiers
PLENA Matrix DSP Amplifiers Product Features 4-channel, Class D power amplifier 100V/70V/8Ω/4Ω outputs Complete loudspeaker processing DSP with input mixing;...
PLENA Matrix DSP Amplifiers
Product Features
- 4-channel, Class D power amplifier
- 100V/70V/8Ω/4Ω outputs
- Complete loudspeaker processing DSP with input mixing; controlled by PC GUI and iOS app
- Amp Link to connect easily with PLM-8M8
- Environmentally friendly auto standby mode
Technical Specification
|
Power Supply |
|
| Nominal input voltage | 100 - 240 VAC ±10%, 50/60 Hz |
| Input voltage limits | 90 - 264 VAC |
| Power consumption (-6dB/idle/ standby) | 412 W / 36 W / 6 W |
| Performance | |
| Rated outputs voltage/impedance | 100 V / 70 V / 8 ohm / 4 ohm |
| Rated output power per channel (continuous *) | 220 W |
| Rated output power per channel (burst *) | 220 W |
| Bridged (CH 1‑2 / 3‑4) (continous *) | 385 W |
| Bridged (CH 1‑2 / 3‑4) (burst *) | 445 W |
| THD+N (1 kHz, 6 dBFS) | 0.03 % |
| Dynamic range (A‑weighted) | >102 dB |
| Frequency response (-1dB) | 65 Hz to 20 kHz (+0/‑3 dB) |
| Crosstalk @ 1 kHz | <-70 dB |

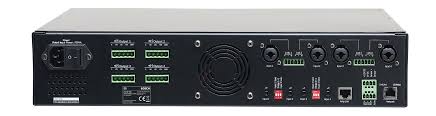

| Connectors | |
| Inputs (wired in parallel) | • 4x 3‑pin XLR balanced • 4x 3‑pole balanced Phoenix terminal (Metric) • 1x RJ45 (Amp Link) |
| Loudspeaker output | 4x 3‑pole Phoenix terminal (Metric) |
| Logic and standby overide | 2‑pole Phoenix terminal (Metric) |
| Ethernet Network 10/100 Mbps | RJ45 |
| 12 V output power for motion sensor | 2‑pole Phoenix terminal (Metric) |
