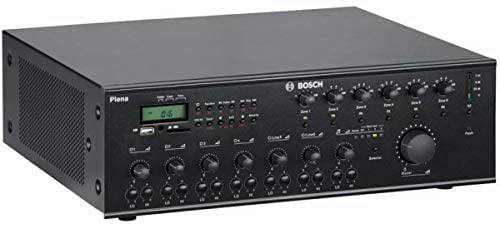

BOSCH PLN-6AIO240 PLENA All-in-One Unit
PLENA All-in-One Unit 6AIO240 Product Features All-in-One solution for background music and paging Six-zone paging system Built-in AM/FM tuner with presets...
PLENA All-in-One Unit 6AIO240
Product Features
- All-in-One solution for background music and paging
- Six-zone paging system
- Built-in AM/FM tuner with presets
- MP3 player for USB device and SD card
- Optional Call Station and Wall Panel with local audio source and remote control
Technical Specification
| Mains power supply | |
| Voltage | 115/230 Vac +/- 15%, 50/60 Hz |
| Fuse rating | 6.3 A (230 Vac) 10 A (115 Vac) |
| Power consumption | 720 W max |
| Performance | |
| Frequency response | Microphone inputs: 100 Hz – 15 kHz +1/-3dB Line inputs: 50 Hz – 20 kHz +1/-3dB (+1/‑3 dB @ ‑10 dB ref. rated output) |
| Distortion | <1% @ rated output power, 1 kHz |
| Bass control | +/- 8 dB @ 100 Hz |
| Treble control | +/- 8 dB @ 10 kHz |
| Remote devices | 2x |
| Call station input | RJ45 for PLN‑6CS |
| Wall panel input | RJ45 for PLN‑4S6Z |
| Microphone/Line input | 6x |
| Input 1 (Push-to-talk contact for priority/ducking) | RJ45 for PLE‑1CS or PLE‑1SCS 3‑pin XLR, balanced, phantom |
| Input 2-6 (with signal detector for priority/ducking) | 3‑pin XLR, balanced, phantom |
| Sensitivity | 1.5 mV (mic); 200 mV (line) |
| Impedance | >600 ohm (mic); >10 kohm (line) |
| S/N (flat at max volume) | >65 dBA (mic); >70 dBA (line) |
| CMRR (mic) | >40 dB (50 Hz to 20 kHz) |
| Headroom | >25 dB |
| Phantom power supply | 18 V – No load |
| Level detector (VOX) on Inputs 1-6 | Attack time 150 ms; release time 3 s |
| Music inputs | 3x |
| Connector | Cinch, stereo converted to mono |
| Sensitivity | 500 mV (inputs1/2) and 300 mV (input 3) |
| Impedance | 10 kohm |
| S/N (flat at max volume) | >65 dBA |
| S/N (flat at min volume/muted) | >75 dBA |
| Headroom | >20 dB |
| FM tuner | |
| Distortion | <1 % |
| Total harmonic distortion (1 kHz) | < 0.8 % |
| FM range | 87.5 - 108 MHz |
| Frequency response | 60 Hz - 12 kHz |
| AM tuner | |
| AM range | 530 - 1602 kHz |
| Input sensitivity | 30 μV |
| Digital audio player | 1x |
| Frequency response | 20 Hz to 20 kHz |
| S/N ratio | >70 dBA |
| Total harmonic distortion (1 kHz) | <1 % |
| Supported formats | MP3, 32 - 320 kbps |
