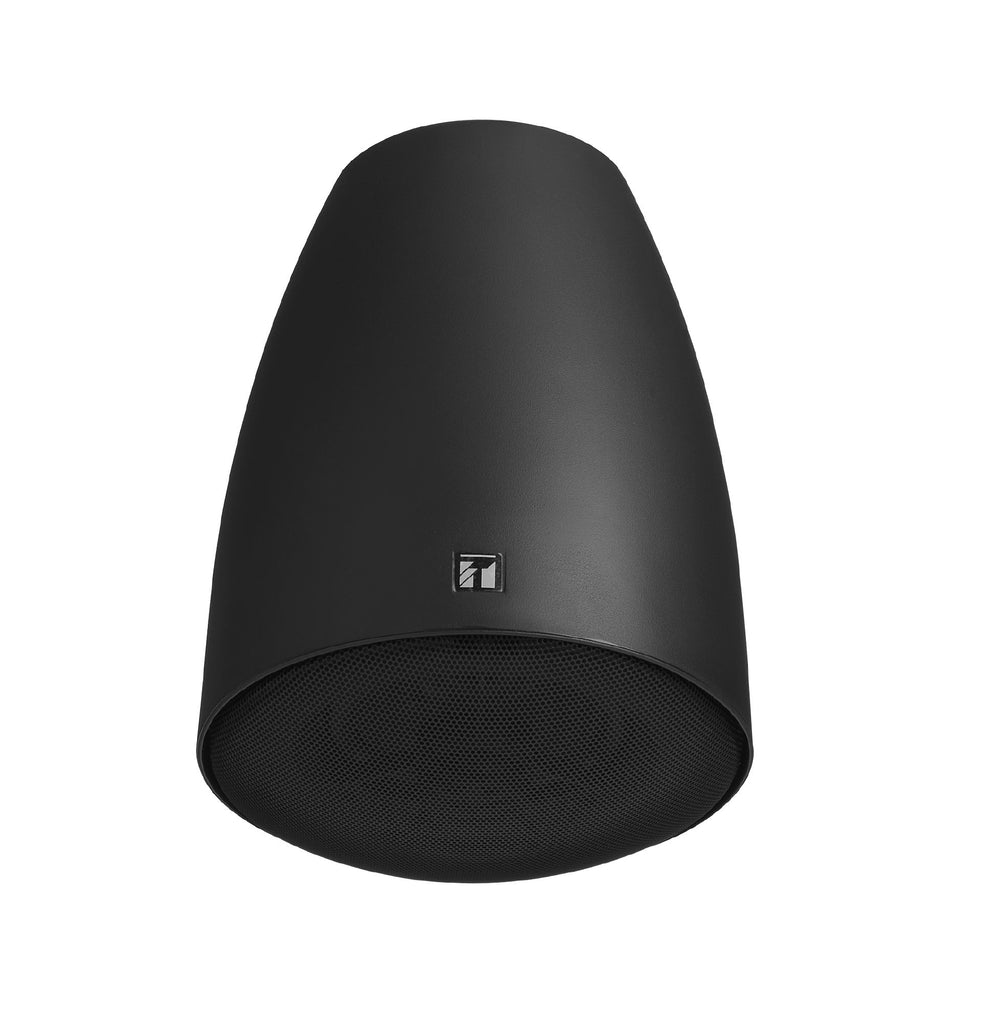

TOA Pendant Speaker PE-304BU 30W
Stylish design inspired by modern lighting fixtures Ideally suited for BGM & announcements 8 Ω and 25 V/70 V/100 V...
- Stylish design inspired by modern lighting fixtures
- Ideally suited for BGM & announcements
- 8 Ω and 25 V/70 V/100 V operation
- Input impedance is easily changed with a rotary switch on the top of the speaker
- With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
- UL certified: UL Code: UL1480 UUMW, ULC-S541
- Bass-refelx type
Specification
| Frequency response | 95 Hz - 20 kHz (-10 dB from sensitivity) |
| Sensitivity (1 W, 1 m) | 90 dB (330 Hz – 3.3 kHz, pink noise) |
| Speaker component | 12 cm cone-type + balanced-dome tweeter (coaxial) |
| Rated input (high impedance) | 30 W |
| Tappings | 100V line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1.3W) |
| 70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.6W) | |
| 25V line: 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.1W) | |
| Low impedance: 8Ω | |
| Rated impedance | 8 Ω |
| Dimensions. | 186 x 275 mm (Ø x H) |
| Finish. | HIPS resin, black (RAL 9011 or equivalent) |
| Accessory (included) | GRIPPLE® No. 1 x 1, GRIPPLE® No. 2 x 1, Release key (for GRIPPLE®) x 1, Safety wire (ø 1.5 mm (ø 0.06”) x 1, |
| Hanging wire (ø 2 mm (ø 0.08 ”) x 1, Speaker Cable (4-core FPL listed cable 4.6 m (15.09ft) x 1 |
