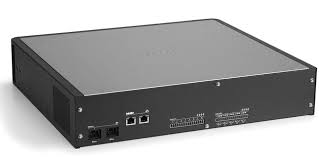

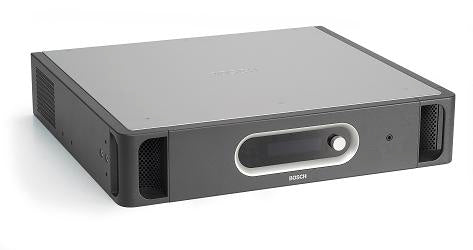

BOSCH LBB 4404/00 CobraNet Interface
CobraNet Interface LBB 4404/00 CobraNetTM, developed by Peak Audio, is a network protocol for real-time uncompressed digital audio distribution over industry...
CobraNet Interface LBB 4404/00
CobraNetTM, developed by Peak Audio, is a network protocol for real-time uncompressed digital audio distribution over industry standard 100Base-T Ethernet networks. Typical applications are room coupling and audio distribution over long distances.
Product Features
- Four CobraNetTM audio inputs
- Four CobraNetTM audio outputs
- Eight supervised control inputs and five control outputs
- Redundant Praesideo network connection
- Redundant CobraNetTM network connection
Technical Specification
| Supply voltage | 24 to 48 VDC |
| Power consumption | 11 W (DC) |
| Audio Transport | Ethernet |
| Channels | 4 in / 4 out per interface Max 64 on CobraNetTM |
| Compliance | IEEE 802.3 |
| Audio Transport | 16 / 20 / 24-bit |
| Sample Rate | 48 kHz |
| Latency | 5.33 ms |
| Integrity assurance | Watchdog |
| Control inputs | 8x |
| Connectors | Removable screw terminals |
| Operation | Closing contact (with supervision) |
| Control outputs | 5x |
| Connectors | Removable screw terminals |
