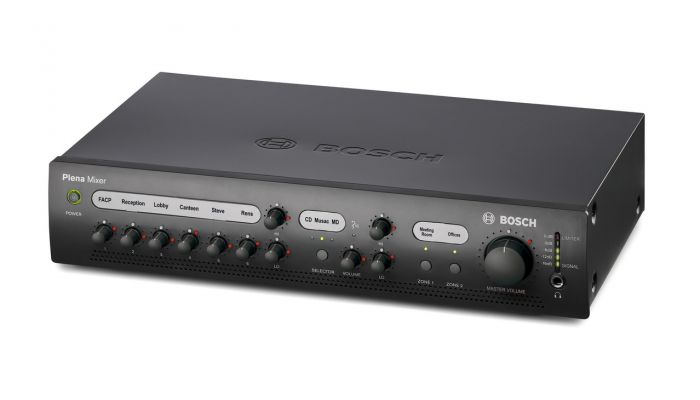

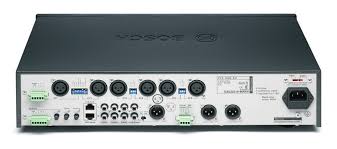

BOSCH PLE-10M2-EU Plena Mixer
Plena Mixer 10M2‑EU Product Features 6 microphone/line inputs, plus 3 music source inputs 100 V, telephone and a call station input...
Plena Mixer 10M2‑EU
Product Features
- 6 microphone/line inputs, plus 3 music source inputs
- 100 V, telephone and a call station input with priority & VOX
- 2 zones and 2-channel operation
- Voice-activated emergency override
- 2-tone chime built in, 7 more chimes optional with call station
Technical Specification
| Main Power supply | |
| Voltage | 115 - 230 VAC ±10%, 50/60 Hz |
| Power consumption | 24 VA |
| Performance | |
| Frequency response | 50 Hz to 20 kHz (+0/‑3 dB) |
| Distortion | <0.1% @ rated output power, 1 kHz |
| Low Control | Max -12/+12 dB (frequency is setting dependent) |
| Hi Control | Max -12/+12 dB (frequency is setting dependent) |
| RJ-45 input | 2 x |
| Call station input | For PLE-2CS(MM) |
| Wall panel input | For PLE-WP3S2Z |
| Mic./Line input | 6 x |
| Input 1 (Push-to-talk contact with ducking functionality) | 5-pin Euro style, balanced, phantom 3-pin XLR, balanced, phantom |
| Input 2-6 (VOX with ducking functionality on input 2) | 3-pin XLR, balanced, phantom |
| Sensitivity | 1 mV (mic); 1 V (line) |
| Impedance | >1 kohm (mic); >5 kohm (line) |
| Dynamic range | 100 dB |
| S/N (flat at max volume) | >63 dB (mic) >70 dB (line) |
| S/N (flat at min volume/muted) | >75 dB |
| CMRR (mic.) | >40 dB (50 Hz to 20 kHz) |
| Speech filter | -3 dB @ 315 Hz, high-pass, 6 dB/oct |
| Phantom power supply | 16 V via 1.2 kohm (mic) |
| VOX (input 1 & 2) | attack time 150 ms; release time 2 s |
| Music input | 3x |
| Connector | Cinch, stereo converted to mono |
| Sensitivity | 300 mV |
| Impedance | 22 kohm |
| S/N (flat at max volume) | >70 dB |
| S/N (flat at min volume/muted) | >75 dB |
| Headroom | >25 dB |
