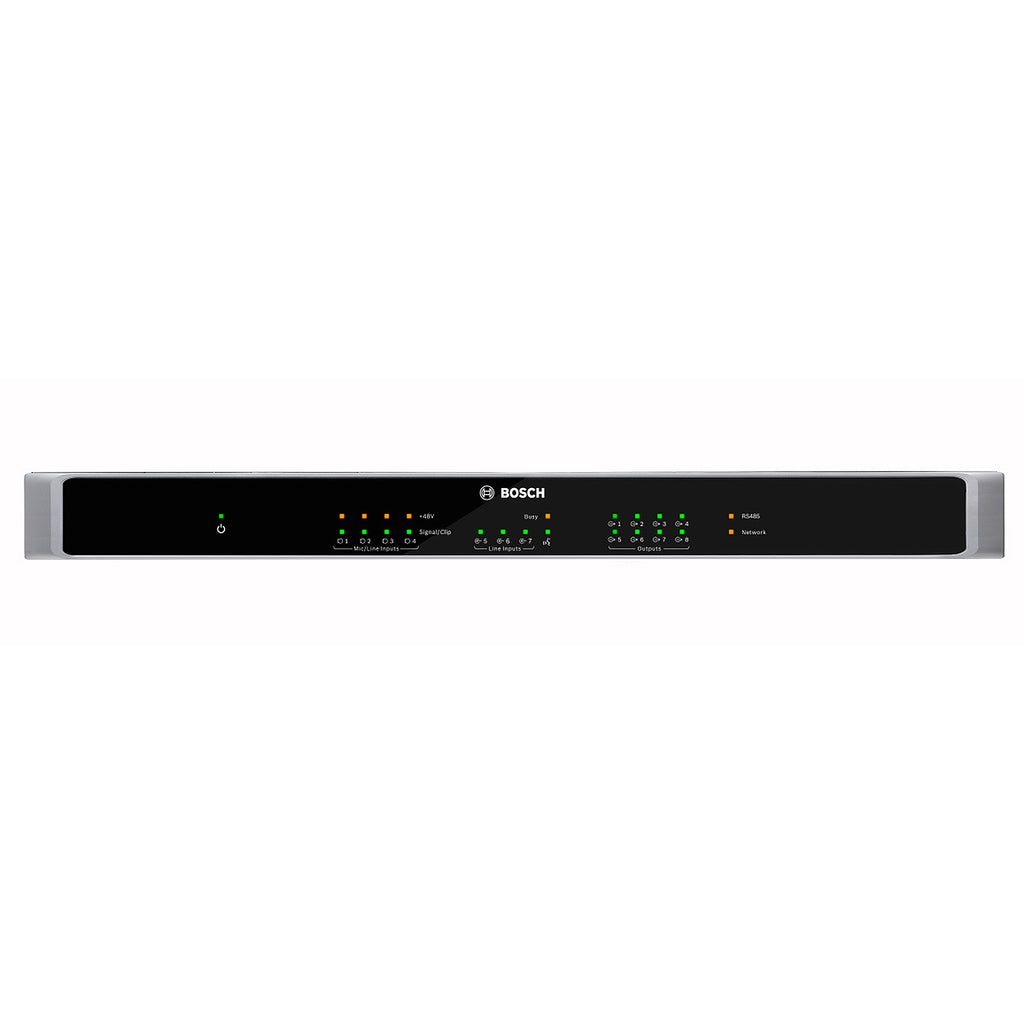

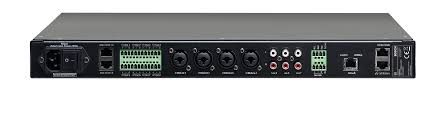

BOSCH PLM-8M8 PLENA Matrix 8 Channel DSP Matrix Mixer

Brand: BOSCH

Product Code: FK-BSH-0301PLM8M8

Availability: In stock

PLENA Matrix 8 Channel DSP Matrix Mixer Product Features Complete DSP zone matrix mixer and loudspeaker processor 4 microphone/line, 3...

Dhs. 5,399.00 Dhs. 5,198.00

Quantity:

Subtotal: Dhs. 5,198.00

Add to WishList

I agree with the terms and conditions

PLENA Matrix 8 Channel DSP Matrix Mixer

Product Features

Complete DSP zone matrix mixer and loudspeaker processor
4 microphone/line, 3 music source, call station and emergency inputs
8 independent output zones, and “Amp Link” outputs
Ethernet control and Windows PC GUI, and an iOS app for zone control via iPhone and iPad
RS485 connection for call stations and wall control panels

Technical Specification

Power supply
Nominal input voltage	100 - 240 VAC ±10%, 50/60 Hz
Input voltage limits	90 - 264 VAC
Power consumption
No devices connected	<10 W
Max. load/max. devices connected	54 W
Performance
Frequency response (-1dB)	20 Hz to 20 kHz (+0/‑3 dB)
Mic./line input	4x
Input Clip level Pad off	8.4 dBu (6.2 dBV)
Input Clip level Pad on	24.2 dBu (21.9 dBV)
CMRR (1 kHz, 0 dBFS))	>46 dB
Phantom power supply	48 V
THD	<0.01 %
Dynamic range (A‑weighted)	>103 dB
Connectors	4x XLR/TRS combo
BGM inputs	3x
Input clip (Pad on)	10.2 dBu (8 dBV)
THD	<0.004 %
Dynamic range (A‑weighted)	>103 dB
Connectors	3x pair of Cinch RCA
Outputs
Output Level	17.7 dBu (15.5 dBV)
Logic inputs
Connector	2‑pole Phoenix terminal (metric)
8CS and WCP (RS485)
Call station connector	1x RJ45
Wall control panel connector	1x RJ45
Amplifier	2x
Connector	RJ45
Nominal leve	1 V
Impedance	<100 ohm
Ethernet (10/100 Mbit/s)	1x
Connector	RJ45

For queries contact: kaizar@fkgtc.com | +971 56 812 0620
