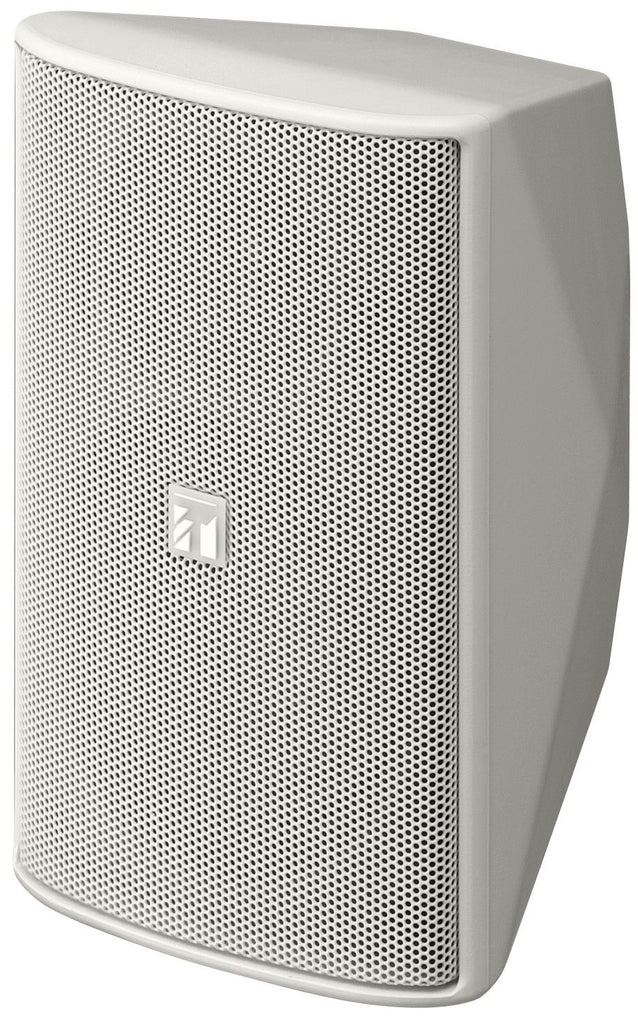

TOA Design Speakers F-1300WTWP EB-Q
2-way speaker with high quality 10 cm woofer and balanced dome tweeter Octagonal horn for clear, wide-area sound coverage Pan-tilt...
- 2-way speaker with high quality 10 cm woofer and balanced dome tweeter
- Octagonal horn for clear, wide-area sound coverage
- Pan-tilt wall/ceiling mounting bracket included
- Easy impedance selection by rotary switch
- Paintable
- Certified according to EN 54-24
Specification
| Frequency response | 80 Hz - 20 kHz (-10 dB) |
| Connection | Screw terminals |
| Sensitivity (1 W, 1 m) | 90 dB |
| Speaker component | Woofer: 13 cm (5'') cone-type |
| Tweeter: 25 mm (1'') dome tweeter | |
| Rated input (high impedance) | 30 W |
| Tappings | 100 V : 330 Ω (30 W) / 1 kΩ (10 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W) |
| 70 V : 170 Ω (30 W) / 330 Ω (15 W) / 1 kΩ (5 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W) | |
| Crossover frequency | 2,000 Hz |
| Operating temperature. | -10°C to + 50°C |
| Dimensions. | 162 x 250 x 161 mm (W x H x D) |
| Finish. | HIPS resin, Steel plate, black (RAL 9011 or equivalent) |
| Accessory (included) | Speaker bracket x 1, joint bracket x 1, wall bracket x 1, bracket fixing screw x 1 set, terminal cover x 1, terminal cover mounting screw x 4 |
