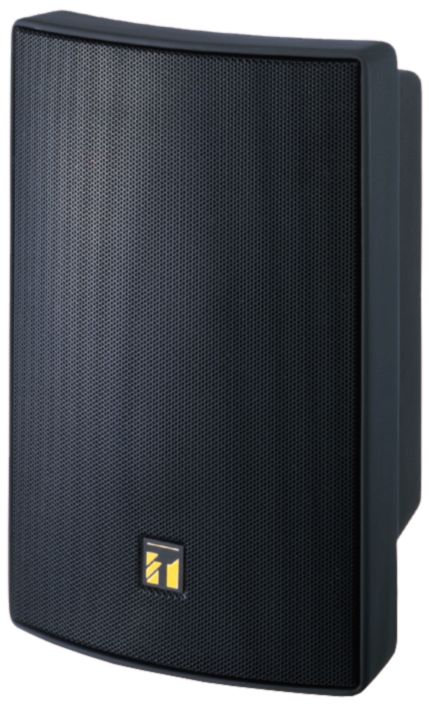

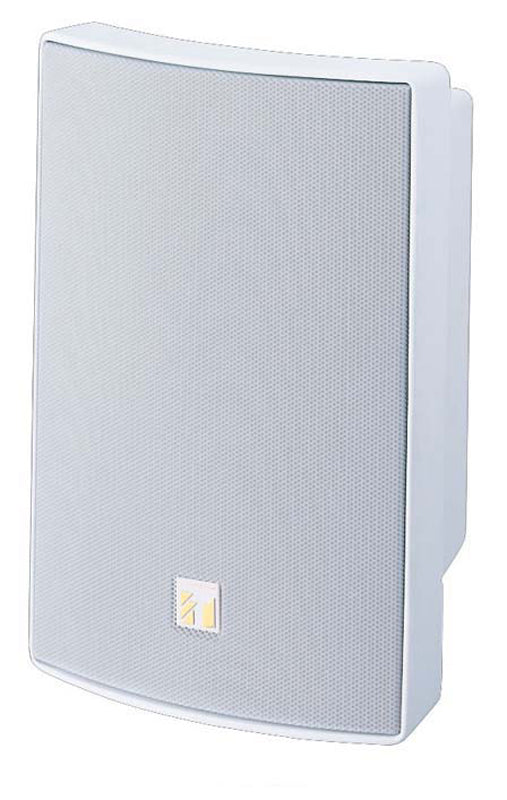

TOA BS-1030 Compact Wall Speaker Black/White
The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and...
The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
- 2-way bass reflex speaker
- Cost-effective high power PA box speaker
- Various installation options
- Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
- Splash proof construction in compliance with IPX4
Specification
| BS-1030B | BS-1030W | |
| Frequency response | 80 Hz - 20 kHz | 80 Hz - 20 kHz |
| Connection | 2-core cabtyre cable (6 mm diameter) | 2-core cabtyre cable (6 mm diameter) |
| Sensitivity (1 W, 1 m) | 90 dB | 90 dB |
| Speaker component | 12 cm dynamic cone-type speaker, 2.5 cm balanced dome tweeter | 12 cm dynamic cone-type speaker, 2.5 cm balanced dome tweeter |
| Rated input (high impedance) | 30 W | 30 W |
| Tapping | 100 V line: 330 Ω (30 W) / 500 Ω (20 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) | 100 V line: 330 Ω (30 W) / 500 Ω (20 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) |
| 70 V line: 170 Ω (30 W) / 250 Ω (20 W) / 330 Ω (15 W) / 500 Ω (10 W) / 1 kΩ (5 W) | 70 V line: 170 Ω (30 W) / 250 Ω (20 W) / 330 Ω (15 W) / 500 Ω (10 W) / 1 kΩ (5 W) | |
| Rated impedance | 8 Ω | 8 Ω |
| Dust / Water protection. | IPX4 (can be installed vertically or horizontally *) | IPX4 (can be installed vertically or horizontally *) |
| Operating temperature. | -10°C to +50°C | -10°C to +50°C |
| Dimensions. | 196 x 290 x 150 mm (W x H x D) | 196 x 290 x 150 mm (W x H x D) |
| Finish. | ABS resin, paint, black (RAL 9011 or equivalent) | ABS resin, paint, black (RAL 9011 or equivalent) |
| Accessory (included) | Bracket x 1, bracket mounting screw x 2, bracket mounting washer x 2 | Bracket x 1, bracket mounting screw x 2, bracket mounting washer x 2 |
